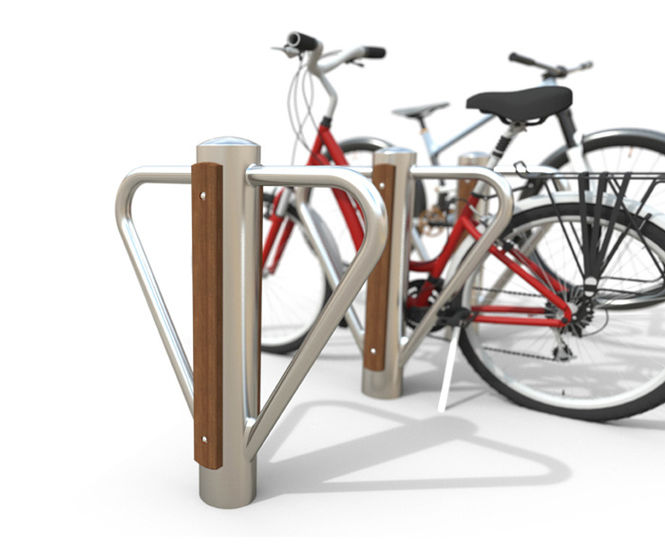

The Protect HMV cycle stand is designed to withstand vehicle impact, tested to IWA 14-1 standards. Made from grade 304 or 316 stainless steel with a brushed finish, Sapele timber bumpers and a galvanised steel impact core, it is surface-mounted with a shallow concrete foundation. Options include flat or dome tops and powder-coated or galvanised steel versions.

  • Cycle stand for secure bike parking with impact resistance

  • Tested to IWA 14-1:2013 for vehicle impact protection

  • Made from stainless steel with Sapele timber bumpers

  • Impact core is hot dip galvanised to BS EN 1461:2009

  • Shallow foundation depth of 250mm for easier installation

  • Choice of flat or dome top designs

  • Powder-coated and galvanised steel options

Applications

  • Public cycle parking areas

  • Transport hubs

  • Commercial developments

  • Urban streetscapes

  • Educational campuses

  • Retail environments

Dimensions

Above ground: 750 (l) x 139 (w) x 820mm (h)

Below ground: 1300 (l) x 1300 (w) x 250mm (h)

Performance

IWA 14-1:2013 test rating

  • Single Core - V/1500[M1]/48/90:2.2

  • Dual Core - V/2500[N1G]/48/90:0.0

Materials

Grade 304/316 stainless steel

Sapele timber

Galvanised steel impact core

Finish

Grit brushed stainless steel

Hot dip galvanised to BS EN 1461:2009

Options and variations

Flat top or dome top

Powder-coated or galvanised steel versions

Installation

Cast in concrete at 250mm depth

Accreditations

Tested to IWA 14-1:2013

Galvanising to BS EN 1461:2009
