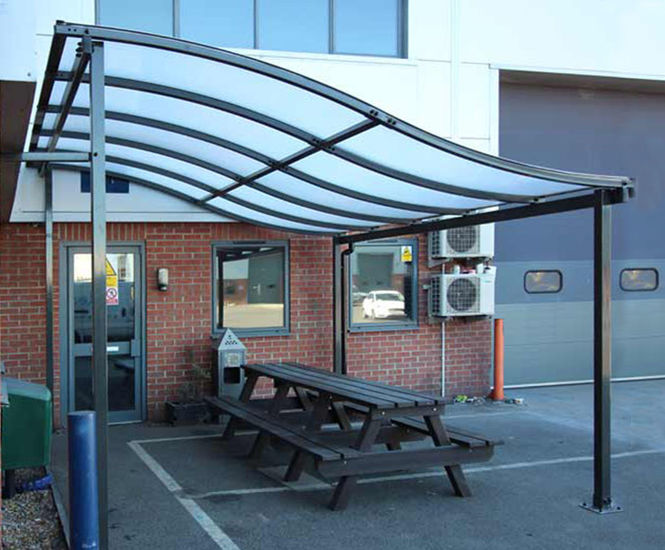

Winterbourne Wave shelter

NBB Outdoors manufactures the Winterbourn Wave shelter for applications including outdoor shelter for break areas, entrances and walkways.

• Cost-effective extension to any area

• Designed to be freestanding, but wall-attached options are available

• Can be self-assembled or installed by NBB's team

• Available in 8 standard colour finishes; bespoke colour options available upon request

Specifications

Frame

• Mild steel, hot dip galvanised to ISO 1461 2009 and polyester epoxy powder-coated

• 75mm uprights and 40 or 50mm square hollow tubes for frame

• Maintenance-free for 15 years; life maintained for 25 years

• Available in 8 standard RAL colours; all other RAL colours available on special order

Roof

• 16mm triple wall polycarbonate roofing

Configurations and assembly

• Available in 6 standard sizes and any configuration

• Surface (bolted) or sub-surface mounted, depending on size and configuration

• All fixings zinc coated

• Supplied with full assembly instructions, or can be assembled by NBB's professional installation team

Sizes
