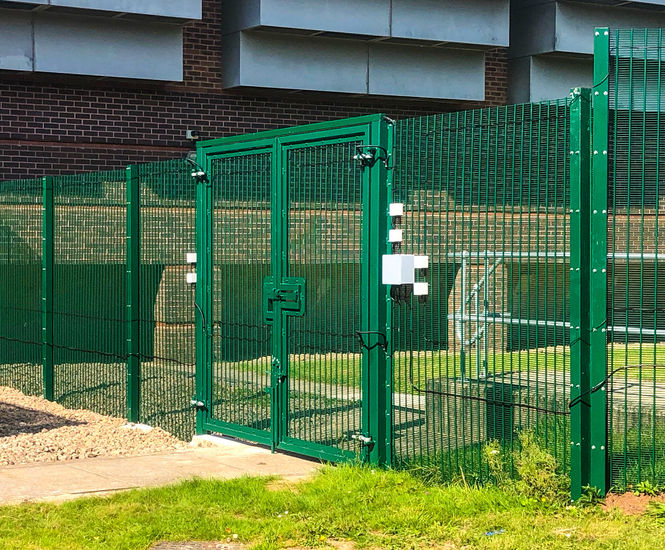

SR2 (B3) Rated Pedestrian Gates are security gates made from steel with welded mesh infills, tested and approved to LPS 1175 SR2 (Issue 7) and B3 (Issue 8) by the Loss Prevention Certification Board. Suitable for pedestrian or vehicle access, these gates are designed to resist physical attack, burglary, vandalism, and terrorism, and are supplied with a slide latch locking system, clamp bar, and SR-rated padlock. Gates can be specified in a range of widths, heights, and colours, and are compatible with automation and additional security toppings.

  • Security gate range for pedestrian or vehicle access, tested to LPS 1175 SR2/B3

  • Made from steel with HiSec SR2 welded mesh infills for enhanced attack resistance

  • Clamp bar, through bolts, and stainless steel fixings for secure installation

  • Slide latch locking system with additional sheath and SR-rated padlock as standard

  • Available in various widths, heights, and double leaf options

  • Complies with BS 1722 Part 14: 2017 for pedestrian swing gates

  • Compatible with automation and a range of security toppings

  • Supplied in RAL colour choice with protective zinc and polyester powder coating

Applications

  • Perimeter security for commercial and industrial sites

  • Pedestrian and vehicle access control points

  • Critical infrastructure protection

  • Public sector and government facilities

  • High-security fencing systems

  • Utilities and data centres

Dimensions

Standard width: 1.2m, other widths and double leaf options available

Heights: 2.4, 3, 4m

Performance

  • Tested and approved to LPS 1175 SR2 (Issue 7) and B3 (Issue 8)

  • Resistant to deliberate attack, burglary, vandalism, and terrorism

  • Life expectancy of at least 15–20 years in UK C1 environment (ISO 12944 p2)

Materials

  • Steel 50mm x 50mm SHS frame

  • HiSec SR2 welded mesh infills

  • Stainless steel fixings

Colours

Supplied in RAL colour choice

Finish

Protective zinc layer and electrostatically applied polyester powder coating to BS1722 p16

Options and variations

  • Double leaf gates available

  • Range of widths and heights

  • Automation compatible

  • Range of topping options for additional security

  • Additional mesh over panel to encase gate within fence line

Installation

  • Supplied with through bolts and stainless steel fixings

  • Clamp bar at side of gate post

  • Three hinges and/or gate arrestor cables for gates above 1.8m

Accreditations

  • LPS 1175 SR2 (Issue 7) and B3 (Issue 8) approved by LPCB

  • Complies with BS 1722 Part 14: 2017

Maintenance

  • Regular washing extends useful life

  • Repair any coating damage to maintain durability
