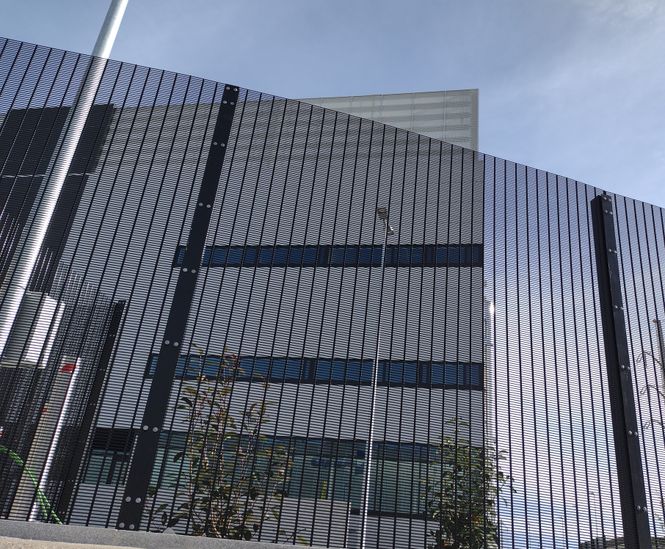

SecureGuard SL2X high-security 358 mesh fence with LPLS 1175 B3 (previously SR2) and LPS 1175 C1 certification. This means it has been tested and certified by LPCB (part of BRE Group) to prevent a persistent attacker using mechanical tools from gaining access for more than 3 minutes, and it will prevent an experienced attacker with powered tooling from gaining access for more than 60 seconds.

To achieve this rating, the panel has 10mm vertical wires, which are more difficult to cut through than the typical 3.8mm wires found in standard 358 mesh fencing.

The 10mm vertical wires are integrated as part of the mesh panel itself, so there is no need for additional steel strengthening strips or using two mesh panels (like many other LPS 1175 B3 mesh fences on the market).

The smart design means that the strength of the system comes from the mesh panel itself rather than additional features which can be costly.

This makes SecureGuard SL2X security mesh fencing one of the most economical LPS 1175 B3 and C1 tested fencing systems on the market and is a more elegant solution than comparable double skinned systems.

All this smart innovation means that the fence panel is simpler to manage than many of the bulky alternatives on the market, along with enabling class-leading see-through visibility for CCTV and guarding.

Extra-wide clamp flats secure the mesh panel to the posts, with two fixings at each point for extra security. Thick vertical wires and small spaces between them  make the system difficult to cut through.

Key features

  • Certified to LPS 1175 B3 (previously SR2) and C1

  • 358 mesh with 10mm-diameter vertical wires

  • One of the most economical LPS 1175 B3 and C1 fencing systems on the market

  • Lighter than comparable systems

  • Aesthetically-pleasing single mesh panel

  • Extra-wide clamp bar fixing

  • Exceeds British Standard BS 1722 Part 14:2016

  • Powder-coated in a range of RAL colours

  • Can be stepped to follow contours on the ground up to 21°

  • LPS 1175 turnstile available to match

  • Swing gates manufactured to British Standard are available to match

Finish

  • Panel: pregalv and polyester powder coated in client's choice of RAL colour

  • Posts: hot dip galvanised and polyester powder coated in client's choice of RAL colour

  • Marine coating or plastic coating also available on request

Specifications

Fence Height (m)

Fixings per post

Fence Panel Weight (kg)

Post centres (m)

Post Section (RHS) (mm)

2.4

18

94.2

2.529

80 x 80 x 3

3.0

22

118

2.529

100 x 100 x 3

Complementary products

  • Inward and outward opening single pedestrian gates

  • Inward and outward opening double pedestrian gates

  • Inward and outward opening single vehicular gates

  • Inward and outward opening double vehicular gates

  • Manual cantilever sliding gate

  • Automatic cantilever sliding gate

  • Turnstile

  • Automatic HVM cantilever gate

  • Bi-folding gate

Installation

Due to its light weight, SL2 X is easier to handle and install than comparable systems. The fencing can be stepped to follow ground contours up to 21°.

Extra-wide clamp flats secure the mesh panel to the posts, with two fixings at each point for extra security. Thick vertical wires and small spaces between the wires make the system difficult to cut through.
