Product code FPA
FInger arms Aluminium
Finials Ball finials
Other
Posts Aluminium
Max number of arms 9
Arm length (mm) 760
Post diameter (mm) 76

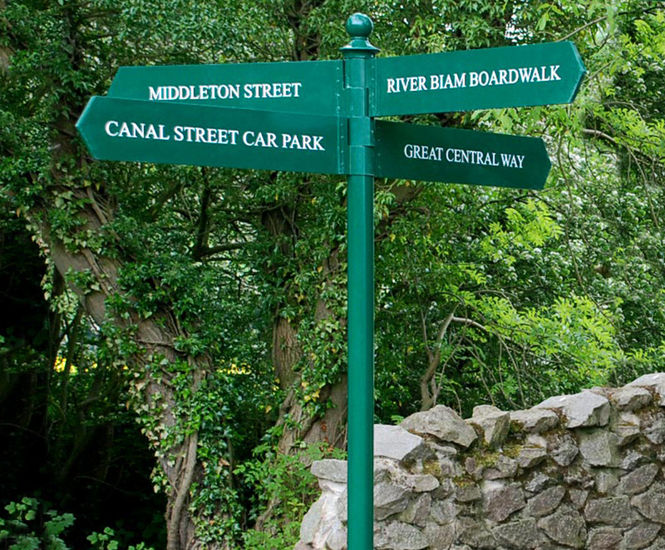

Aluminium fingerposts offer a cost-effective and durable method of providing wayfinding information. Greenbarnes' system allows a maximum of 9 fingers per post mounted on up to 3 levels, with 1, 2 or 3 fingers on each level.

Individual fingers can be rotated to point in any direction and, once set, are locked in place by grub screws. The minimum possible angle between 2 fingers on the same level is 15°.

Square and chevron-ended fingers available: square creates a modern aesthetic; chevron-ended are suitable where a more traditional appearance is desired.

Lettering is applied in computer-cut vinyl characters to one or both sides of each finger and optional border lines can be included.

Specifications

  • Posts: 76mm dia; aluminium
  • Fingers: 760mm long (visual); manufactured from 165 (h) x 16mm (d) aluminium box-section extrusion
  • Up to 9 fingers per post (3 fingers per level x 3 levels)
  • Minimum angle between 2 fingers on the same level: 15°
  • Powder-coated finish
  • Pre-production layout proof supplied for approval

Options

  • Square or chevron-ended fingers
  • Powder-coating in a choice of 13 RAL colours
  • Vinyl lettering in choice of 16 colours


Aluminium fingerposts offer a cost-effective and durable method of providing wayfinding information. Greenbarnes' system allows a maximum of 9 fingers per post mounted on up to 3 levels, with 1, 2 or 3 fingers on each level.

Individual fingers can be rotated to point in any direction and, once set, are locked in place by grub screws. The minimum possible angle between 2 fingers on the same level is 15°.

Square and chevron-ended fingers available: square creates a modern aesthetic; chevron-ended are suitable where a more traditional appearance is desired.

Lettering is applied in computer-cut vinyl characters to one or both sides of each finger and optional border lines can be included.

Specifications

  • Posts: 76mm dia; aluminium
  • Fingers: 760mm long (visual); manufactured from 165 (h) x 16mm (d) aluminium box-section extrusion
  • Up to 9 fingers per post (3 fingers per level x 3 levels)
  • Minimum angle between 2 fingers on the same level: 15°
  • Powder-coated finish
  • Pre-production layout proof supplied for approval

Options

  • Square or chevron-ended fingers
  • Powder-coating in a choice of 13 RAL colours
  • Vinyl lettering in choice of 16 colours
