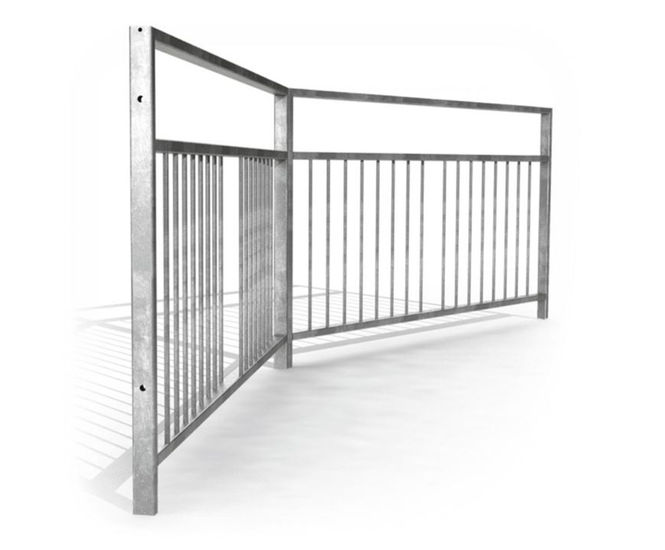

Mild steel barrier system designed to improve pedestrian safety while maintaining visibility. Made from galvanised steel to BSEN1461, panels are 2000 (w) x 1000mm (h), with a sight gap at the top and in-line infill bars. Custom lengths and various infill patterns are available.

  • Pedestrian barrier system with sight gap for increased visibility

  • Made from galvanised mild steel for durability

  • Panels measure 2000mm wide by 1000mm high

  • Custom lengths and infill patterns (staggered, standard, racked, radius)

  • Complies with BS 7818:1995 Class 2a / 3c

  • Powder coating to any RAL colour available

  • Root fixed or surface fixed installation options

Applications

  • Pavements and walkways

  • School and public building perimeters

  • Transport hubs and stations

  • Car parks

  • Urban streetscapes

  • Retail and commercial areas

Dimensions

Width 2000mm

Height 1000mm

Materials

Galvanised mild steel

Finish

Galvanised to BSEN1461

Polyester powder coating to any RAL colour (optional)

Options and variations

Staggered, standard, racked and radius infill patterns

Custom lengths made to order

Installation

Root fixed or surface fixed

Joined with 2 x M10 bolts

Accreditations

BS 7818:1995 Class 2a / 3c
