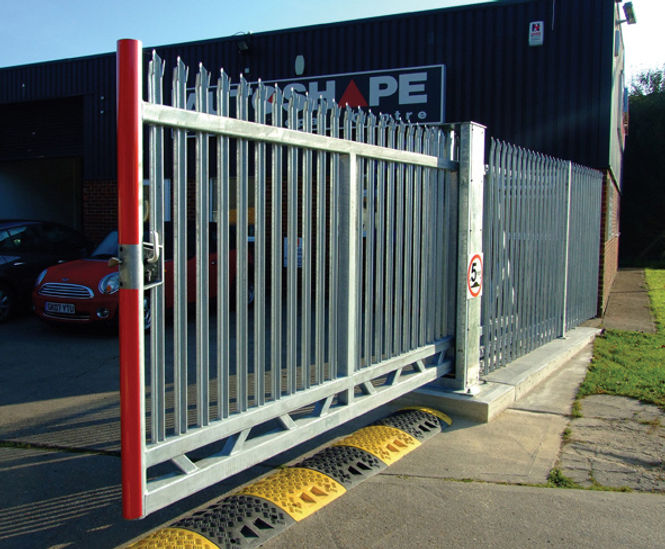

SlideGuard cantilever security gates with steel palisade infill create a secure and durable access point for industrial sites, schools, commercial and business parks where swing gates are not suitable due to space restrictions.

They consist of three modules: the gate leaf; the rear rolling section; and the main tower.

Features

  • No track required meaning it can be installed on uneven ground

  • Smooth and virtually silent execution

  • Operates at 3-6 seconds per metre (depending on size and infills)

  • Automated or manual operation

  • Gate heights to 3.0m

  • Double-leaf spans to 12m

  • W or D pale infill options

  • In-house powder coating

  • Matching fencing systems

  • Compliant to BS/EN 12453

  • CE Marked and TUV approved

Specifications

Material

Dimensions

Power

Gate leaf and main tower: aluminium
Tower top/base plate wheel carriages: zinc-plated steel

12m max span
2.4m max height at 12m wide
3m max height at 10m wide

Single phase
240v 50Hz 5 amps

Gate infill options

W Pale
Square, triple pointed, rounded and notched, single pointed

D Pale
Square, triple pointed, rounded and notched, single pointed

Manufacture

Cantilever gates are manufactured and assembled in house to the relevant British standards, guaranteeing the highest quality product and exceptional service.

To ensure gates match aesthetic and functional needs, each gate is manufactured bespoke to order.

Safety features

With safety a priority, all automatic gates come with safety edges and photo cells to detect anything in the way of the closing gate, as well as fully compliant to BS/EN 12453.

Delivery and installation

SlideGuard gates are delivered ready to bolt down, and if they are automatic, ready for plugging into a power source.

Additional security features

  • Barbed wire

  • Razor wire

  • Electrified fence

  • Anti-climb spikes

  • Traffic lights

  • Warning siren
