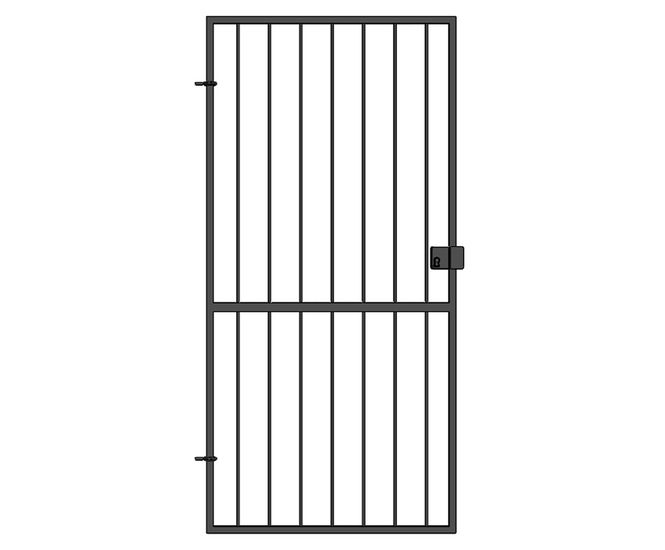

ASF wall-mounted security gate
ASF security gates can be manufactured as wall-mounted (to create a gated barrier in a passageway), to fit over doors, or to be part of an exsting or new railing system. Suitable for commercial, indystrial or domestic uses 1980mm high; sides and crossbar from 30mm box section; 30 x 8mm top and bottom rails; 16mm solid round infill bars; 99mm gap
ASF security gates can be manufactured as wall-mounted (to create a gated barrier in a passageway), to fit over doors, or to be part of an exsting or new railing system.
Suitable for commercial, indystrial or domestic uses
Standard gates
1980mm high
Sides and crossbar from 30mm box section
30 x 8mm top and bottom rails
16mm solid round infill bars
99mm gap between bars
Galvanised, primed and black powder coated
Supplied with adjustable hinges, hinge brackets, catch and fixing bolts (with shear nuts for added security
Additional features
Additional hinges can be added for more security
Lock type can be specified
Can be manufactured to fit over a door
Can have architectural elements added to tie in with existing railings/other architectural features
