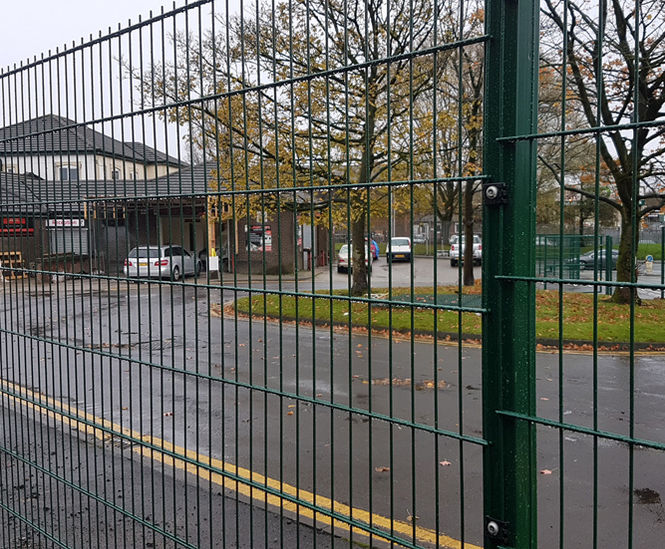

Urban DB-8 security mesh fencing
Urban DB-8 is a heavy-duty, vandal-resistant rigid wire fencing system designed to provide excellent perimeter protection. DB-8 is the tougher version of Urban Fencing's DB-6 range, and features an increased horizontal wire diameter of 8mm. This gives greater protection against vandalism attempts to cut through. This higher level of security is
Click for full image
Suitable for businesses, schools and industrial sites
Urban DB-8 is a heavy-duty, vandal-resistant rigid wire fencing system designed to provide excellent perimeter protection. DB-8 is the tougher version of Urban Fencing's DB-6 range, and features an increased horizontal wire diameter of 8mm. This gives greater protection against vandalism attempts to cut through. This higher level of security is complemented by a flush-fitting clamp bar system.
Typical applications of Urban DB-8 are industrial sites, business parks, retail parks, public areas and schools, including play areas.
As well as offering excellent security protection, DB-8 benefits from excellent visual appearance and is easy to install.
Dimensions
Standard panel heights are 1.0, 1.2, 1.8, 2,0, 2.4 and 3.0m. Increased heights can be achieved using Urban Fencing's multi-lift system.
Mesh apertures are 200x50mm; 8mm horizontal wires are at 200mm centre; 6mm vertical wires are at 50mm; post centres are 2500mm.
