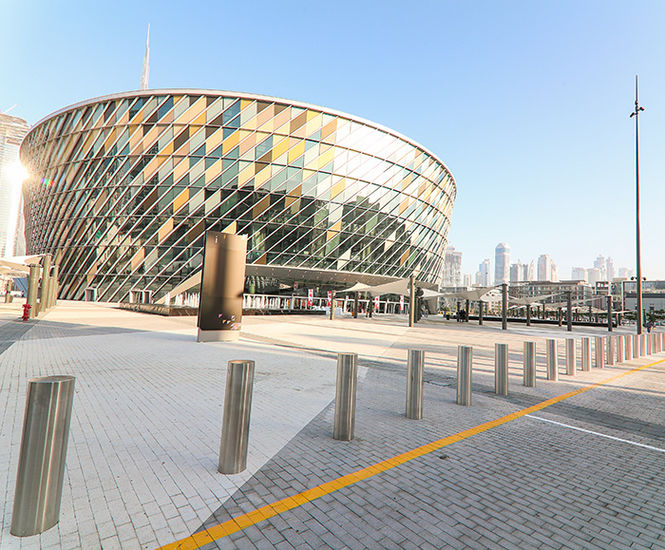

PAS 68 Static Terra Jupiter Bollard is a high-strength security bollard made from S355 structural steel, impact tested to stop a 7.5t vehicle at 50mph (1852kJ). Designed for counter-terrorist protection, it stands 1000mm above ground with a 273mm diameter and 500mm embedment depth.

  • High-impact security bollard for hostile vehicle mitigation

  • PAS 68 tested to stop 7.5t vehicle at 50mph (80kph)

  • Made from S355 structural steel for strength

  • Polyester powder coated as standard, with stainless steel sleeve options

  • Secured by Design and BRE Global accredited

  • Removable version available

  • Meets BSi PAS 69 installation guidelines

Applications

  • Perimeter security for public spaces

  • Critical infrastructure protection

  • Government and military sites

  • Transport hubs

Dimensions

Standard bollard

Height above ground 1080mm

Diameter 273mm

Embedment depth 500mm

Shallow bollard

Height above ground 1000mm

Diameter 273mm

Embedment depth 200mm

Materials

S355 structural steel plate

Finish

Shotblasted, hot zinc sprayed (galvanised), primed, polyurethane paint

Optional 316 stainless steel satin or bead blasted sleeves

Options and variations

Removable version

Decorative sleeves with dome or mitre tops

Performance

PAS 68 tested: V/7500[N3]/80/90:10.5/11.1

Impact energy 1852kJ

Installation

Foundation Type C

Installed at 1200mm between upright faces to meet PAS 69

Product accreditations

PAS 68

Secured by Design

BRE Global
