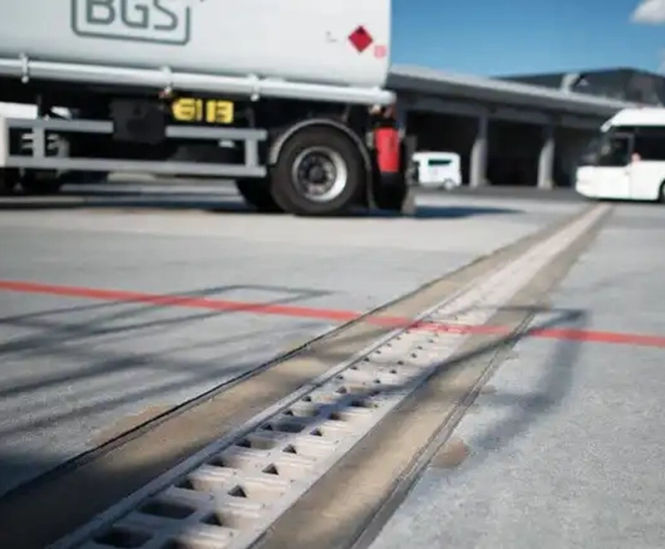

H Range products are one-piece drainage systems designed for heavy-duty applications such as highways, industrial areas and distribution yards.

The channel systems are manufactured from polymer concrete and have large intake areas. The absence of a separate grating ensures resistance to vandal damage and eliminates failures caused by loose gratings.

H Range RD

Available in four channel widths: 100, 150, 200 and 300mm. Variety of depths to suit many design schemes.

  • 100 and 150mm units - 1000mm length

  • 200mm unit - 1000 and 2000mm length

  • 300mm unit - 2000mm length

The system is fully certified to BS EN 1433: 2002 up to and including Load Class F 900 applications - suitable for extremely high wheel loads including ports, docks and aircraft pavements.

Accessories

All H Range systems have a full range of accessories for simple connection to underground drainage.

Features

  • Manufactured from strong, robust polymer concrete

  • Integral channel and grating/slot design improves inherent strength of the system

  • High in-take capacity provided by 29mm, 37mm, 42mm, 42mm wide inlets (for H Range RD100V, RD150V, RD200V, RD300V respectively).

  • ACO H Range is available in four channel widths: 100mm, 150mm, 200mm and 300mm.

  • ACO H Range is available in 1000mm lengths (with RD 300V available in 2000mm).

  • ACO H Range system is fully certified to Load Class D 400 - F 900

Benefits

  • H Range comes with a sealant groove for simple watertight installations

  • For use in heavy duty highway and industrial applications

  • No loose gratings eliminates the risk of loss or vandalism

  • Large intake area for maximum hydraulic performance

  • Tough and robust channel design

  • Range of accessories available for simple connection to underground drainage
