Sector Public realm
Project type New build
Services provided Site survey
Design
Product / system manufacture
Installation
Project location South West England
Client Cheltenham Borough Council
Consultant Public Realm Design Team at Cheltenham Borough Council

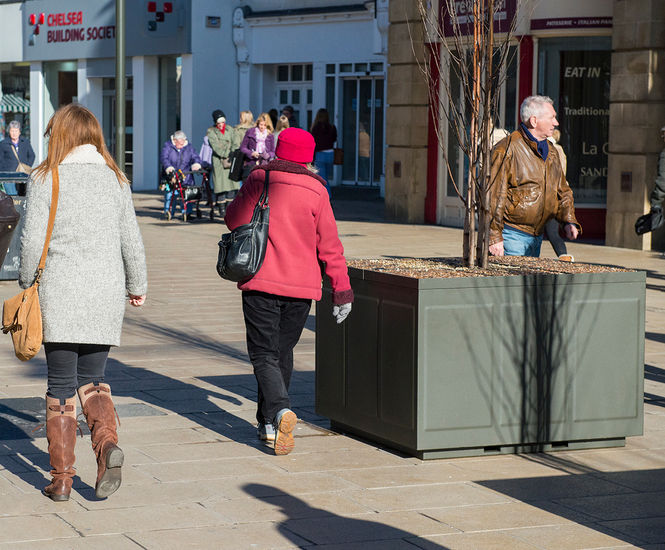

Cheltenham Borough Council commissioned IOTA to manufacture steel tree planters for a scheme to green two prime retail locations in pedestrianised areas of Cheltenham High Street.

The 5 planters were manufactured from powder coated steel, with resin-bound gravel lids, measuring 1200 L x 1200 W x 850mm H. They were built with an internal frame in mild steel box section, and powder coated to RAL 600 [Grey olive].

The planter design concept was developed by the Public Realm Design Team at Cheltenham Borough Council, with constructional detailing by IOTA.

Bespoke design elements included:

  • pressed panels on all 4 sides, raised 3mm from background surface
  • separate lid in 2 sections, including removable resin-bound gravel infills
  • lifting eyes in base of planter for tree anchor attachment
  • internal 50mm box section frame to enable planter to be safely lifted, fully-planted
  • plinth with 90 x 30mm channel sections, to accommodate lifting straps
  • certified lifting frame

The paint was specially originated for the project, with a finely-textured surface finish. The installation was carried out by IOTA via HIAB lorry.


Cheltenham Borough Council commissioned IOTA to manufacture steel tree planters for a scheme to green two prime retail locations in pedestrianised areas of Cheltenham High Street.

The 5 planters were manufactured from powder coated steel, with resin-bound gravel lids, measuring 1200 L x 1200 W x 850mm H. They were built with an internal frame in mild steel box section, and powder coated to RAL 600 [Grey olive].

The planter design concept was developed by the Public Realm Design Team at Cheltenham Borough Council, with constructional detailing by IOTA.

Bespoke design elements included:

  • pressed panels on all 4 sides, raised 3mm from background surface
  • separate lid in 2 sections, including removable resin-bound gravel infills
  • lifting eyes in base of planter for tree anchor attachment
  • internal 50mm box section frame to enable planter to be safely lifted, fully-planted
  • plinth with 90 x 30mm channel sections, to accommodate lifting straps
  • certified lifting frame

The paint was specially originated for the project, with a finely-textured surface finish. The installation was carried out by IOTA via HIAB lorry.
