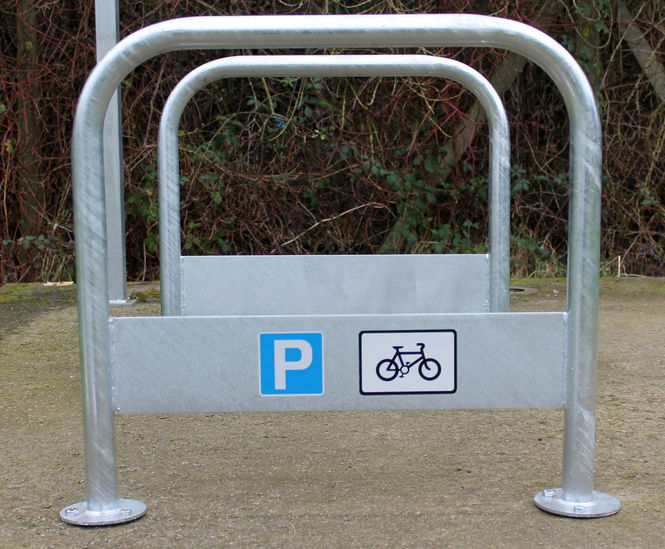

Transport - cycle stand for high footfall areas
The Transport cycle stand is designed for use in high footfall public areas. An integrated low-level signage plate 100mm above the ground doubles as a functional tapping rail for easy identification by visually impaired pedestrians. The signage plate incorporates the cycle parking ‘P’ and cycle symbol signs as standard, ensuring the parking area
The Transport cycle stand is designed for use in high footfall public areas.
An integrated low-level signage plate 100mm above the ground doubles as a functional tapping rail for easy identification by visually impaired pedestrians. The signage plate incorporates the cycle parking ‘P’ and cycle symbol signs as standard, ensuring the parking area is easily identifiable.
Features
Galvanised mild steel tube
Stainless steel finish is also available
Suitable for one or two bikes (one each side)
Cyclists can secure the frame and wheel of their bicycles to the stand using their own lock
Available ragged for casting in or flanged for bolting down
Low-level signage plate doubles as a functional tapping rail
Reflective tape can be added to increase visibility
Specifications
800 (l) x 750mm (h)
60mm diameter tube
3mm wall thickness (mild steel)
2mm wall thickness (stainless steel)
300mm below ground (ragged version)
Flanged version requires 6no 12mm bolts
Signage plate: 150 (h) x 700mm (l)
Tapping rails and signage plates are fixed at 100 and 300mm above the ground respectively
Options
Colour-coated finishes; RAL number to be specified when ordering
