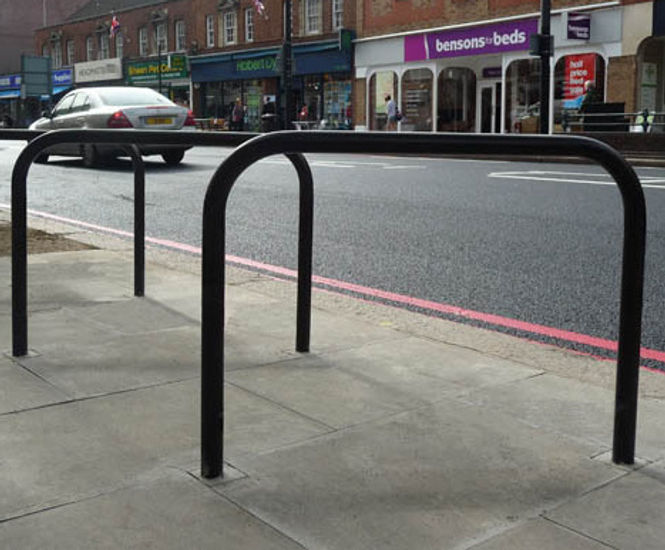

Sheffield Cycle Stand is an outdoor cycle parking solution made from mild or stainless steel. Available in two widths and multiple finishes, it can be root fixed, base plated, or freestanding as a toast Rack configuration for multiple bikes.

  • Bike stand for secure bicycle parking

  • Made from mild steel (galvanised or polyamide) or stainless steel (G304 or G316, bright or satin polish)

  • Root fixed, base plated and free standing toast rack options

  • Reflective tape and tapper rail options for improved visibility and accessibility

  • Manufactured from recycled steel in toast rack versions

  • Choice of widths: 750mm or 1000mm

Applications

  • Public cycle parking areas

  • Schools and universities

  • Commercial and retail developments

  • Transport hubs

  • Residential complexes

  • Parks and recreational spaces

Dimensions

Sheffield Cycle Stand

Product Codes

Tube Diameter

Width (mm)

Height (mm)

Galv Steel + Root fixed

SHE6-7535-75-GA

Ø48

750mm

750mm Above Ground

350mm Below Ground

Galv Steel + Base plated

SHE6BASE-75-75-GA

Ø48

750mm

750mm

Galv Steel + Root Fixed

SHE6-7535-10-GA

Ø48

1000mm

750mm Above Ground

350mm Below Ground

Galv Steel + Base plated

SHE6BASE-75-10-GA

Ø48

1000mm

750mm

Stainless Steel + Root Foxed

SHE6-7530-75-S4

Ø51

750mm

750mm Above Ground

350mm Below Ground

Stainless Steel + Base plated

SHE6BASE-75-75-S4

Ø51

750mm

750mm

Stainless Steel + Root Fixed

SHE6-7530-10-S4

Ø51

1000mm

750mm Above Ground

350mm Below Ground

Stainless Steel + Base plated

SHE6BASE-75-10-S4

Ø51

1000mm

750mm

Materials

Mild steel

Stainless steel (G304 or G316)

Recycled steel (toast Rack)

Colours

Galvanised

Black polyamide

Stainless steel

Finish

Bright polished stainless steel

Satin polished stainless steel

Galvanised mild steel

Polyamide coated mild steel

Options and variations

Standard or Toast Rack (2, 3, 4, or 5 stands)

Root fixed, base plated, or freestanding

Reflective tape

Tapper rails

Installation

Root fixed: foundation depth matches root depth of cycle stand

Base plated: 2 fixing holes for Ø14mm ground fixings (not supplied)

Freestanding
