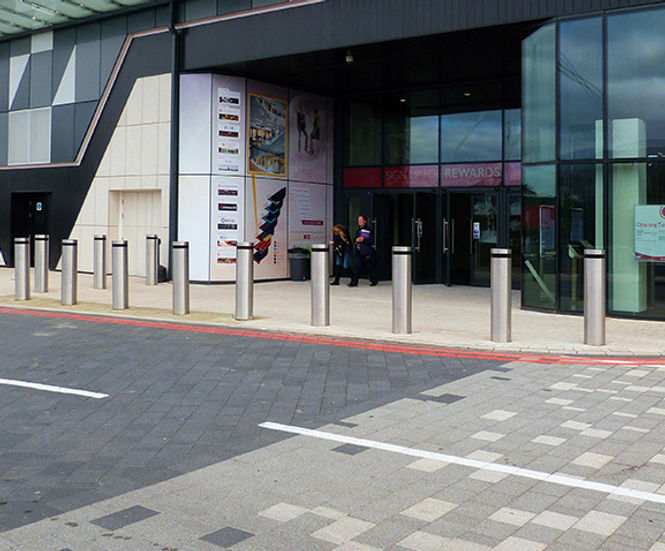

Terra Venus static hostile vehicle mitigation (HVM) bollards are designed to stop a 7.5 tonne vehicle travelling at 30mph, tested to PAS 68 and IWA 14 standards. Made from S355 structural steel, these static bollards are suitable for high-security applications and are available with a range of finishes and decorative sleeves.

  • High-security static bollard for vehicle impact protection

  • PAS 68 and IWA 14 tested to stop 7.5t at 30mph (667kJ)

  • Made from S355 structural steel for strength

  • Choice of finishes including galvanised, painted, and stainless steel sleeves

  • Height above ground 1000mm, 219mm diameter

  • Embedment depth 500mm, suitable for various foundation types

  • Secured by Design and BRE Global accredited

Applications

  • Public realm areas

  • Main entrances

  • Crowded places

  • Shopping centres

  • City centre markets

  • Critical infrastructure

Dimensions

Height above ground: 1000mm

Diameter: 219mm

Embedment depth: 500mm

Performance

PAS 68 classification V/7500[N2]/48/90:0.0/0.0

Impact energy 667kJ

Materials

S355 structural steel

Finish

Shotblasted, hot zinc sprayed (galvanised), primed, polyurethane paint

Optional 316 stainless steel satin or bead blasted sleeves

Options and variations

Decorative sleeves with mitre or dome tops, colour bands, engraving

Installation

Foundation type C, 1200mm spacing between bollard faces to meet PAS 69

Accreditations

PAS 68, IWA 14, Secured by Design, BRE Global
