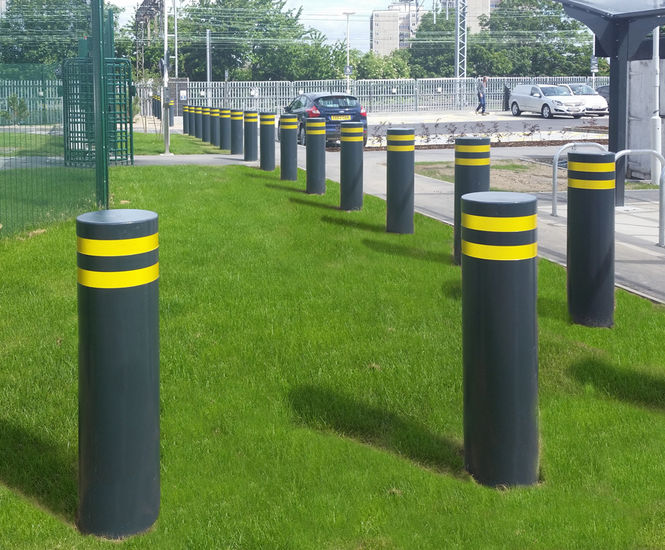

PAS 68 Terra Neptune static high-strength, fixed security bollards are designed for hostile vehicle mitigation, and impact-tested to stop a 7.5-tonne vehicle at 40mph (64kph). Made from S355 structural steel, they are suitable for counter-terrorist protection in public and private spaces, with a range of finishes and sleeve options to suit different design requirements.

  • High-strength static security bollard for vehicle impact protection

  • PAS 68 tested to stop a 7.5t vehicle at 40mph (1185kJ)

  • Made from S355 structural steel for durability

  • Choice of finishes including powder coating and stainless steel sleeves

  • Height above ground 1000mm, diameter 273mm

  • Range includes shallow depth and removable options

  • Secured by Design and BRE Global accredited

Applications

  • Perimeter security for public spaces

  • Protection of building entrances

  • Critical infrastructure sites

  • Government and military facilities

  • Transport hubs

  • Commercial and retail environments

Dimensions

Height above ground: 1000mm

Diameter: 273mm

Embedment depth: 600mm

Performance

PAS 68 classification V/7500[N2]/64/90:3.3/0.0

Impact energy 1185kJ

Materials

S355 structural steel

Finish

Shotblasted, hot zinc sprayed, primed, polyurethane paint

Optional 316 stainless steel satin or bead blasted sleeves

Powder coated paint in RAL colours

Reflective banding available

Options and variations

Shallow depth and removable versions

Mitre or dome top sleeve designs

Decorative sleeve options

Installation

Foundation Type C, 600mm embedment

Accreditations

PAS 68

Secured by Design

BRE Global
