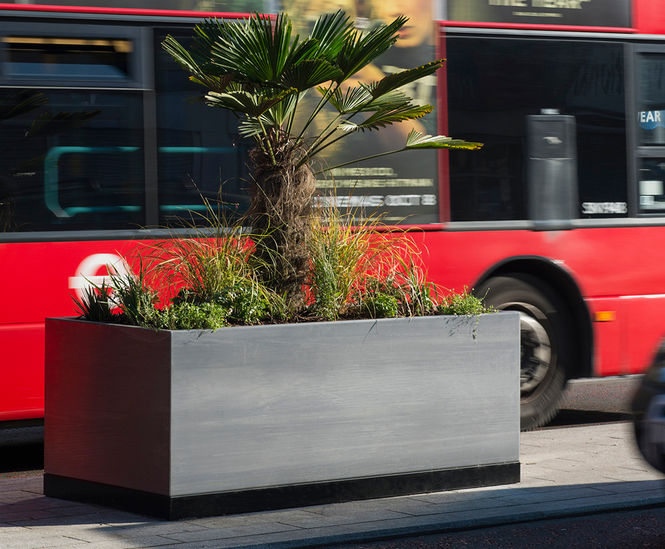

Bespoke stainless steel planters were specified by Ealing Council, as part of streetscape improvements to Southall Broadway – a section of the Uxbridge Road in the town centre of Southall, West London.

The planters were designed and specified by the Major Projects & Development Team of Ealing Council, and formed part of improvements to Southall Broadway aimed to result in a more attractive and safer street, more space for pedestrians and cyclists, and better traffic flow. These works themselves form one part of a larger, 5-year plan of major improvements led by Ealing Council, called the Southall Big Plan.

A total of 9 planters were supplied, which included various bespoke design elements:

Technical info

  • Dimensions: 2000 x W 1000 x H 800mm
  • Material: 3mm thick 304-grade Stainless Steel with a brushed finish
  • Bespoke H 100mm plinth, polyester powder coated to RAL 9017 [Traffic black]
  • 4nr. 100 x 100 mm pockets in the base, down to ground level, to enable the planters to be fastened to the pavement surface via concrete sleeve anchors
  • 4nr. steel eye bolts in the base, to serve as tree anchor points
  • IOTA also supplied an internal water reservoir system for each planter
