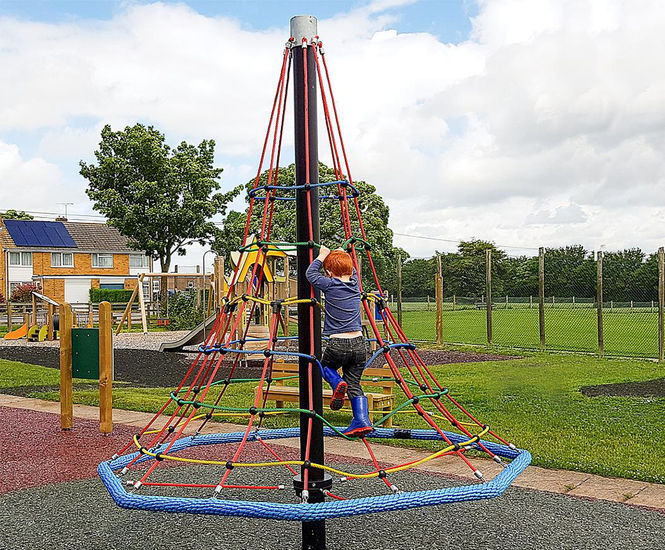

Rope tree Stork's nest is a play structure combining carousel, climbing frame, and hand-over-hand elements, made from aluminium and plastic-coated steel cable. Designed for children from 3 years, it supports varied play activities and requires minimal space for installation.

  • Multi-activity play structure for climbing, swinging, and balancing

  • Made from aluminium posts and plastic-coated steel cable for durability

  • Suitable for children aged 3 years and above

  • Includes impact protection net and fall protection area

  • Requires minimal installation space with a compact footprint

  • Assembly by two people in approximately 1.5 hours

Applications

  • Public playgrounds

  • School play areas

  • Parks and recreation spaces

  • Community centres

  • Outdoor activity zones

Technical data

Minimal space

Ø 5,75x3,70 m

Fall protection netto

26,0 m²

Freefall height

190 cm

Biggest part

Ø 15x400 cm

Heaviest part

60 kg

Foundation level

ET 700

Foundation

1x CF

Soil quality

at least sand

Catalogue index

Rope trestle Stork's Nest

Dimensions

  • Size 2.73 x 2.74 x 3.34 m

  • Minimal space required Ø 5.75 x 3.70 m

  • Freefall height 190 cm

  • Impact protection area 26.0 m²

  • Heaviest part 60 kg

  • Biggest part Ø 15 x 400 cm

Materials

Aluminium posts, plastic-coated steel cable, stainless steel, polyethylene, galvanised steel ring, polypropylene rope

Installation

Requires foundation type CF and ground of at least sand

Assembly by two people in 1.5 hours

Accreditations

Circular Product certification by GKM GmbH

Certificate: Z2_010651_0523_Rev00

Sustainability

CO2e emissions of materials and production process considered in certification
