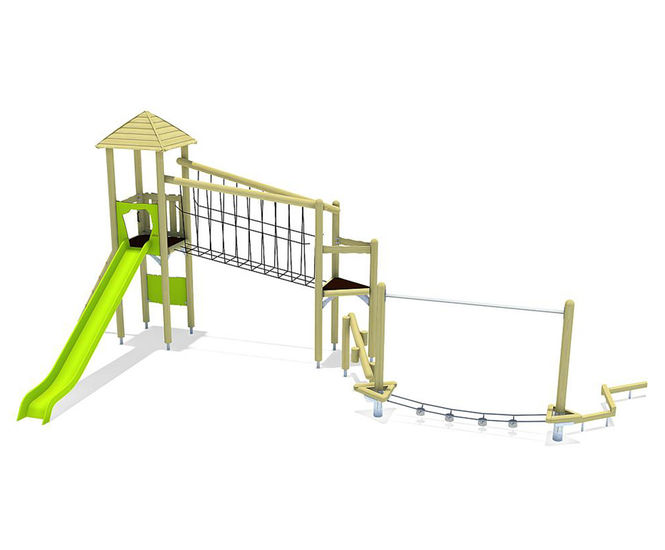

Play unit Gelvin, solo is a modular outdoor play structure made from pressure-impregnated softwood, larch, and high-pressure laminate, designed for children aged 6 and above. Key features include multiple platforms, bridges, slides, and climbing elements, with a focus on durability and safety for public play areas.

  • Outdoor play structure for children aged 6+

  • Made from pressure-impregnated softwood, larch, galvanised steel, stainless steel, and high-pressure laminate

  • Includes platforms, sloped net bridge, zigzag crossover, slides, and climbing features

  • Designed for safety with walk-through protection, parapets, and impact protection net

  • Suitable for installation on sand or similar ground conditions

  • Supports sustainable design with 68% renewable raw materials and 20% recycled content

  • CO2 emissions of 1734.4 kg per unit

Technical specification

Material

softwood pressure-impregnated

Minimal space

13,94x8,14x4,39 m

Fall protection netto

49,5 m²

Freefall height

195 cm

Foundation level

ET 400/800

Foundation

16x CF or 12x PFs + 4x CF

Soil quality

at least sand

Catalogue index

unique Play unit unique Gelvin

Applications

  • Public playgrounds

  • School outdoor areas

  • Parks and recreation spaces

  • Community play spaces

Dimensions

Minimum space required 13.94 x 8.14 x 4.39 m

Freefall height 195 cm

Impact protection area 49.5 m²

Materials

Pressure-impregnated softwood

Larch

Galvanised steel

Stainless steel

High-pressure laminate (HPL)

Aluminium (coated)

Plastic-coated steel cable

Installation

Requires 2 people, estimated 8 hours assembly

Foundation: 16x CF or 12x PFs + 4x CF

Ground condition: at least sand

Sustainability

68% renewable raw materials

20% recycled material

CO2 emissions 1734.4 kg per unit
