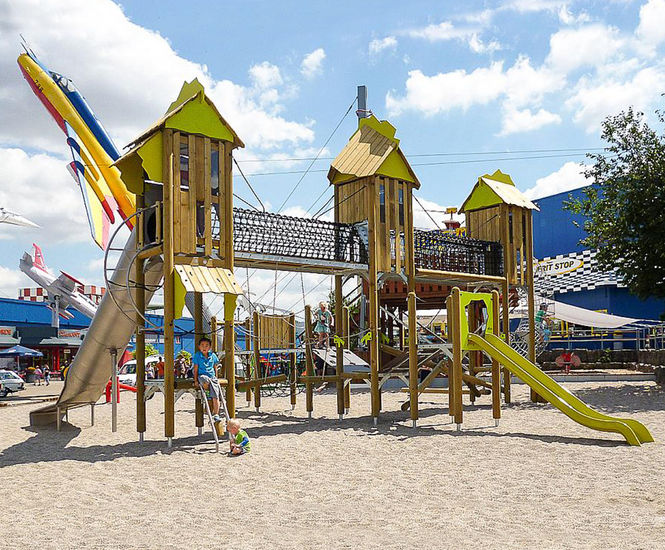

Play unit Shadra 1, solo is a large outdoor play structure made from pressure-impregnated softwood, larch, and galvanised steel, designed for children aged 6 and above. Includes multiple platforms, climbing elements, net tunnels, and various ascents, supporting diverse play activities in public spaces.

  • Large multi-activity play structure for children aged 6+

  • Made from pressure-impregnated softwood, larch, and galvanised steel

  • Includes platforms, climbing ramps, net tunnels, and balance elements

  • Incorporates high-pressure laminate (HPL) and stainless steel components

  • Designed for durability and varied play experiences

  • Suitable for installation in public outdoor environments

Technical specification

Material

softwood pressure-impregnated

Minimal space

14,90x14,12x6,03 m

Fall protection netto

103,0 m²

Freefall height

295 cm

Biggest part

Ø 14x449 cm

Heaviest part

325 kg

Foundation level

ET 400

Foundation

77x CF

Soil quality

at least sand

Catalogue index

unique Play unit unique Shadra 1

Applications

  • Public playgrounds

  • Parks and recreation areas

  • School outdoor spaces

  • Community play areas

  • Leisure and holiday parks

Dimensions

Minimal space 14.90 x 14.12 x 6.03 m

Fall protection area 103.0 m²

Freefall height 295 cm

Biggest part diameter 14 x 449 cm

Heaviest part 325 kg

Materials

Pressure-impregnated softwood

Larch

Galvanised steel

High-pressure laminate (HPL)

Stainless steel

Plastic-coated steel cable

Perspex

HDPE

Macrolon

Installation

Foundation level ET 400

Foundation 77x CF

Soil quality at least sand

Sustainability

Pressure-impregnated softwood and larch used for durability
