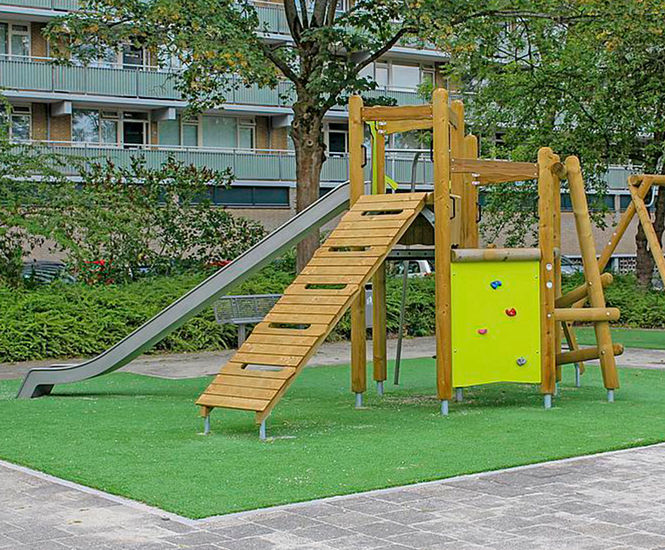

Play unit Lycon 1, solo is a modular outdoor play structure made from pressure-impregnated softwood and galvanised steel, designed for children aged 4 and above. Key features include multiple climbing elements, platforms, and slides, with a focus on durability and safety for public play areas.

  • Outdoor play structure for children aged 4+

  • Includes climbing wall, fireman's pole, ramps, and platforms

  • Made from pressure-impregnated softwood, galvanised steel, and stainless steel

  • High-pressure laminate (HPL) used for key surfaces

  • Designed for safety with a freefall height of 195 cm and impact protection area

  • Modular design allows for varied play activities

  • Suitable for installation in public playgrounds and recreational spaces

Applications

  • Public playgrounds

  • School outdoor play areas

  • Parks and recreational spaces

  • Community centres

  • Leisure facilities

Technical data

Material

softwood pressure-impregnated

Minimal space

9,50x7,01x3,75 m

Fall protection netto

42,5 m²

Freefall height

195 cm

Biggest part

Ø 14x287 cm

Foundation level

ET 400

Foundation

11x CF or 11x PFs

Soil quality

at least sand

Catalogue index

unique Play unit unique Lycon 1

Dimensions

Minimum space 9.50 x 7.01 x 3.75 m

Freefall height 195 cm

Impact protection area 42.5 m²

Biggest part diameter 14 x 287 cm

Materials

Pressure-impregnated softwood

Galvanised steel

Stainless steel

High-pressure laminate (HPL)

Plastic-coated steel cable

Installation

Requires 2 people, estimated assembly time 7 hours

Foundations: 11x CF or 11x PFs

Ground conditions: at least sand

Sustainability

CO2 emissions 1244.8 kg

64% renewable raw materials

24% recycled material
