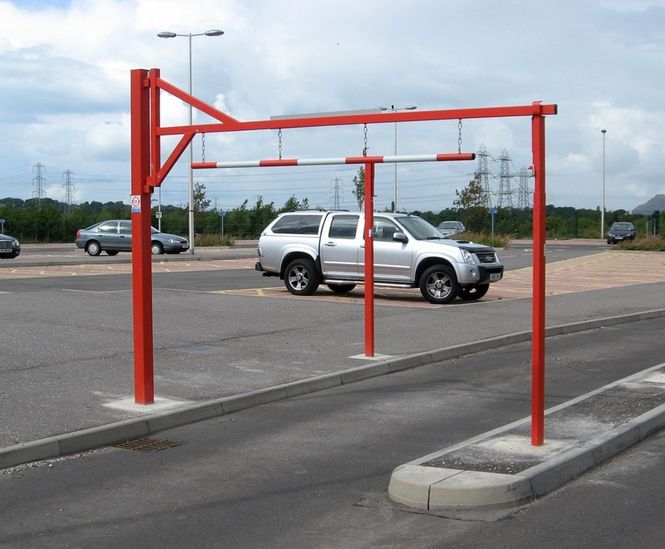

AUTOPA Single swing height restrictor for vehicular access
AUTOPA's swing height restrictor is designed to restrict access to high-sided vehicles such as HGVs and caravans. It can allow occasional access where delivery vehicles or refuse collections may be required: galvanised steel construction; finish coated red with white class 2 reflective tape; swing boom lockable by padlock (extra); single height
AUTOPA's swing height restrictor is designed to restrict access to high-sided vehicles such as HGVs and caravans. It can allow occasional access where delivery vehicles or refuse collections may be required.
Features
Galvanised steel construction
Finish coated red with white class 2 reflective tape
Swing boom lockable by padlock (extra)
Single height restrictor up to 7m wide
Specifications
Galvanised steel main post construction 120 x 120 x 3mm; base 400 x 400 x 10mm
Catch post 90 x 50 x 3mm; base 340 x 254 x 10mm
2.05m (±70mm) standard clearance to knocking bar
Ragged for casting in or flanged for bolting down
600mm below ground (ragged version)
Four 16mm bolts required for each leg (flanged version).
Options
Additional catch post available for occasional access by high sided vehicles (required if swing boom is to be locked in open position)
Knocking bars
Road warning signs
Swing gates (cannot be retrofitted to an existing height restrictor)
