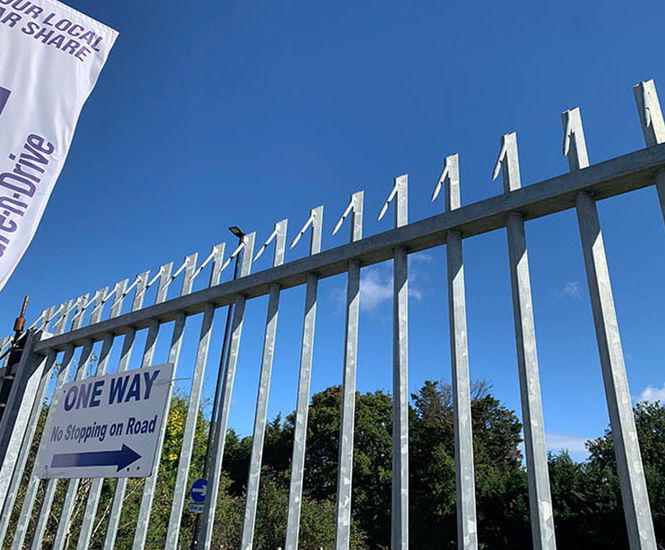

Barbican® Barbed Top - security fencing system

Barbican Barbed Top security fencing features barbs welded to the top of the pales which act as a highly effective deterrent and barrier to intruders.

Posts can be customised for barbed wire and razor wire for added protection against trespassing.

Panels are available in 2.25, 2.5m and 3.0m heights to prevent accidental injuries caused by contact with the protruding spikes.

Key features

• Anti-climb design

• Pales can be extended and set into concrete to protect against burrowing

• Mounting options include on wall, inset and free standing

• Can be stepped or special panels can be made to accommodate sloping ground

• Matching gates are available

• Conforms to BS EN 1722-9

Panels

Barbican Barbed Top panels are up to 3000mm high and have two horizontal hollow sections rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres (96mm gap between pales). Each pale has a 10mm round pointed bar added.

Finishes

• Galvanised to BS EN 1461 as standard

• Galvanised and powder coated to BS EN 13438 in one of our standard colours BS or RAL colours (extra cost)

• Powder coating to any other BS or RAL colours (special order)

Barbican® Barbed Top Panel Specifications
