Frame Timber / wood
Roof / canopy Aluminium
Polycarbonate
Fixing Root fixed
Surface / baseplate fixed
Number of bikes 10
Dimensions (w x d x h) 4630 x 2700 x 2612

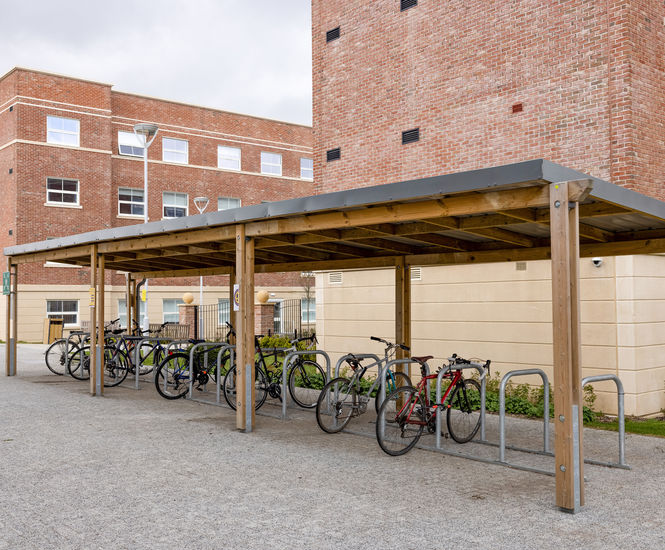

The Sheldon Cycle Shelter SCS301 is a modular timber structure single row cycle shelter solution with galvanised steel foot supports and a polycarbonate roofing system to protect bicycles from the elements.

The shelter is made up of bay units with 2500 x4200mm of internal clearance which can each house a single row of up 5 cycle hoops (parking 10 bikes per bay), depending on BREEAM requirements. The first bay of each cycle shelter unit has four legs with each continuation bay having an additional two legs and sharing two from the previous bay.

The timber structure of the Sheldon Cycle Shelter SCS301 can be supplied in various materials to suit site needs; from treated Redwood to Hardwood Iroko. The 16mm Twinwall Polycarbonate roofing system comes as standard and allows daylight to be diffused into the shelter naturally but a Stucco Aluminium profile sheet roofing is also available for this structure if required. The Steel leg supports are galvanised as standard but can also be powder coated to match any project colour schemes that have been designed with a provided RAL colour reference.


The Sheldon Cycle Shelter SCS301 is a modular timber structure single row cycle shelter solution with galvanised steel foot supports and a polycarbonate roofing system to protect bicycles from the elements.

The shelter is made up of bay units with 2500 x4200mm of internal clearance which can each house a single row of up 5 cycle hoops (parking 10 bikes per bay), depending on BREEAM requirements. The first bay of each cycle shelter unit has four legs with each continuation bay having an additional two legs and sharing two from the previous bay.

The timber structure of the Sheldon Cycle Shelter SCS301 can be supplied in various materials to suit site needs; from treated Redwood to Hardwood Iroko. The 16mm Twinwall Polycarbonate roofing system comes as standard and allows daylight to be diffused into the shelter naturally but a Stucco Aluminium profile sheet roofing is also available for this structure if required. The Steel leg supports are galvanised as standard but can also be powder coated to match any project colour schemes that have been designed with a provided RAL colour reference.





Downloads
  • SCS301 - Sheldon Cycle Shelter
    SCS301 - Sheldon Cycle Shelter
    2pp 1.26MB
    Download



Enquire
