System type Rigid (welded) mesh systems
Overall height 990mm to 6096mm
Panel width 2515mm
Aperture size (h x w) 76.2mm x 12.7mm

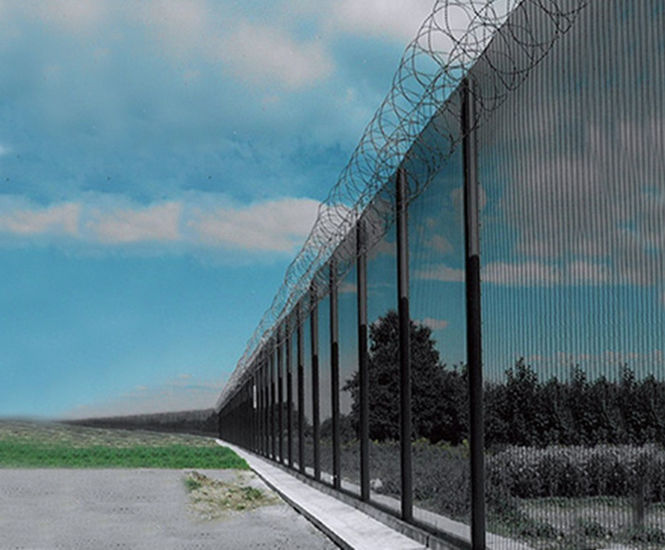

Cordguard Pre-galvanised prison mesh panels have a high-density weld configuration that provides a finger-proof, anti-climb barrier with a high delay factor to potential intruders or escapees.

The fencing is extremely difficult to cut using conventional wire cutters.

It provides excellent through visibility, due to a 4.00mm* wire diameter and a rectangular mesh configuration.

It is compatible with most electronic alarm and detection systems and has a 76.2mm x 12.7mm (3” x ½”) mesh aperture, (wire centre to wire centre).

Standard panel width is 2515mm, however panels can be manufactured up to 3658mm wide (minimum production quantity applies).

Range of heights available from 990mm to 6096mm.

Weld strength is minimum of 70% of wire strength, prior to welding solidity of 36%.

* Nominal diameter after polyester coating.

Product applications

  • Prisons and Secure Hospitals
  • Military Installations
  • Nuclear Installations
  • Ports and Airports
  • Border Fencing
  • Commercial Sites
  • Sports Stadiums / Pitches


Cordguard Pre-galvanised prison mesh panels have a high-density weld configuration that provides a finger-proof, anti-climb barrier with a high delay factor to potential intruders or escapees.

The fencing is extremely difficult to cut using conventional wire cutters.

It provides excellent through visibility, due to a 4.00mm* wire diameter and a rectangular mesh configuration.

It is compatible with most electronic alarm and detection systems and has a 76.2mm x 12.7mm (3” x ½”) mesh aperture, (wire centre to wire centre).

Standard panel width is 2515mm, however panels can be manufactured up to 3658mm wide (minimum production quantity applies).

Range of heights available from 990mm to 6096mm.

Weld strength is minimum of 70% of wire strength, prior to welding solidity of 36%.

* Nominal diameter after polyester coating.

Product applications

  • Prisons and Secure Hospitals
  • Military Installations
  • Nuclear Installations
  • Ports and Airports
  • Border Fencing
  • Commercial Sites
  • Sports Stadiums / Pitches
