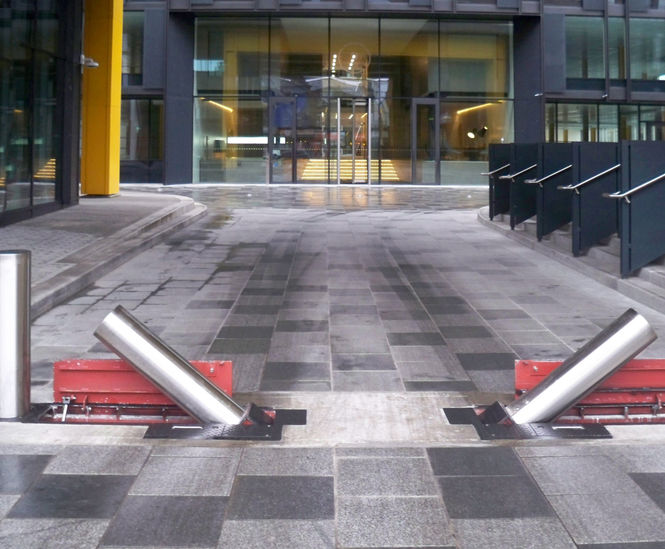

PAS 68 Terra Quantum is a shallow-depth, side-folding, retractable hostile vehicle mitigation (HVM) bollard, impact-tested to stop a 7.5t vehicle at 30mph with zero penetration. Designed for automatic or manual operation, it has a small foundation footprint and can be installed as single or paired units for wider apertures.

  • Shallow-depth, side-folding retractable HVM bollard for vehicle impact protection

  • Impact tested to PAS 68 standard, stopping 7.5t at 30mph (667kJ) with zero penetration

  • Automatic or manual hydraulic operation with padlockable locking pin

  • Small foundation footprint for ease of installation

  • Lift height 925mm, can be twinned for 4m clear aperture

  • Available in powder coated or stainless steel finishes, with optional reflective banding

  • Fully functional after impact test, 100% duty cycle

Applications

  • Perimeter security for public spaces

  • Vehicle access control at building entrances

  • Critical infrastructure protection

  • Government and military sites

  • Commercial and retail environments

  • Event venues and stadia

Dimensions

Lift height: 925mm

Performance

PAS 68 tested: 7.5t at 30mph (667kJ), zero penetration

100% duty cycle

Fully functional after impact

Materials

Made from S355 structural steel plate

Colours

Powder coated in RAL colours

Finish

Polyester powder coated, satin polished stainless steel, or bead blasted stainless steel

Optional anti-slip paint for top plate

Optional reflective banding in various colours and positions

Options and variations

Automatic or non-powered manual operation

Single or paired installation for wider apertures

Installation

Shallow foundation depth, designed for ease of installation and maintenance

Accreditations

PAS 68

Secured by Design

BRE Global
