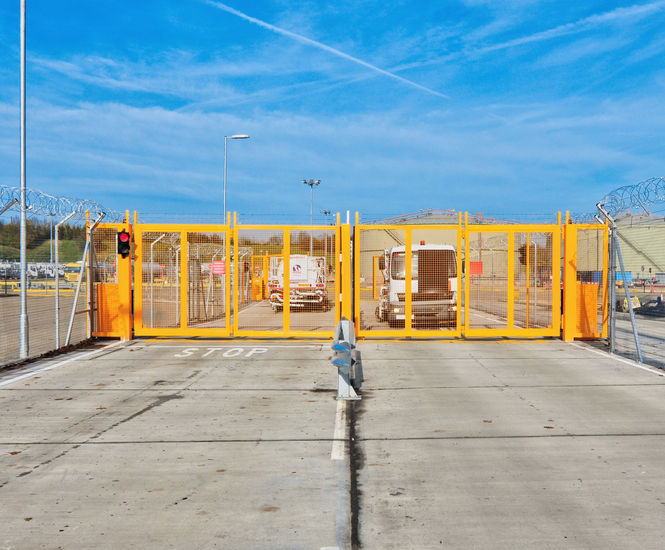

Bi-folding speed gates from Frontier Pitts are fast-acting security gates designed for locations with limited space for movement. Made from welded low carbon steel with bar and mesh infill, they are available in manual or automatic models, with overhead track, bottom track or trackless options. Standard and bespoke sizes are offered for a range of site requirements.

  • Fast-acting bi-folding security gate for restricted spaces

  • Manual or automatic operation with actuator-powered options

  • Multiple track configurations: overhead, bottom, or trackless

  • Safety systems include vehicle detector loops, photocells, and safety edges

  • Access control compatibility with a wide range of systems

  • Corrosion protection with shotblasted, zinc-sprayed, and polyurethane painted finish

  • 100% duty cycle for continuous operation

Applications

  • Commercial and industrial site entrances

  • Perimeter security for restricted access areas

  • Car parks and vehicle control points

  • Locations with limited space for gate swing

  • Critical infrastructure and utility sites

Dimensions

Maximum width 10,000mm

Standard height 2400mm

Maximum height 5000mm

Performance

100% duty rating

Materials

Low carbon steel, rectangular hollow section

Vertical 50 x 25mm ERW bar infill at 180mm centres

50mm square galvanised weld mesh backing

Colours

Any RAL colour

Finish

Shotblasted, hot zinc sprayed, primed, polyurethane painted

Acid dipped and hot galvanised for smaller gates

Installation

Gate post foundation depth up to 5000mm, dependent on automation

Accreditations

Secured by Design

BRE Global

Technical support

Product brochure, data sheet, drawings and case studies available
