Suitability Housing

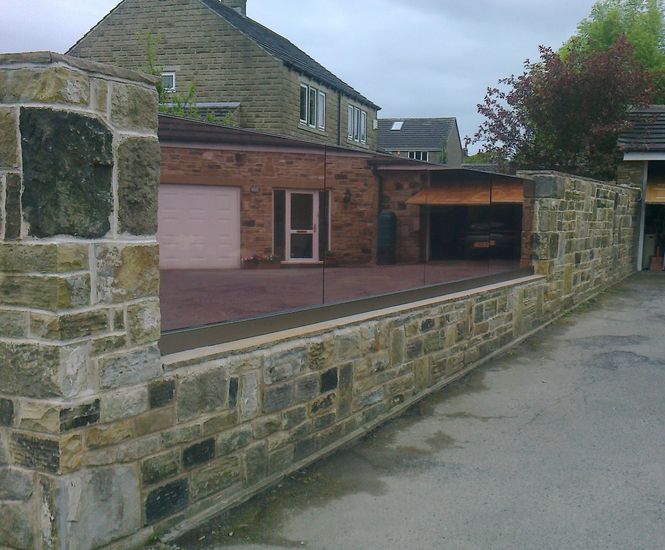

ASF Max Channel fixed glass balustrade is a heavy duty and extremely heavy use balustrade suitable for domestic and commercial use, including stairways, that can achieve a loading of 3kN.

  • Glass is supplied at 1100mm high as standard, giving approx 1m above ground when installed. Other heights are available; higher glass will affect loadings.
  • Glass thicknesses are 19mm, 20.76mm, 21.52mm, 24.76mm, 25mm, 25.52mm, and 31.52mm.
  • Toughened glass is supplied as standard. When loadings or specifications require laminated glass, this can be supplied.
  • Glass can be supplied clear, smoked or bead-blasted and can be etched, tinted or curved.
  • Side- or fascia-mounted also available.


ASF Max Channel fixed glass balustrade is a heavy duty and extremely heavy use balustrade suitable for domestic and commercial use, including stairways, that can achieve a loading of 3kN.

  • Glass is supplied at 1100mm high as standard, giving approx 1m above ground when installed. Other heights are available; higher glass will affect loadings.
  • Glass thicknesses are 19mm, 20.76mm, 21.52mm, 24.76mm, 25mm, 25.52mm, and 31.52mm.
  • Toughened glass is supplied as standard. When loadings or specifications require laminated glass, this can be supplied.
  • Glass can be supplied clear, smoked or bead-blasted and can be etched, tinted or curved.
  • Side- or fascia-mounted also available.
